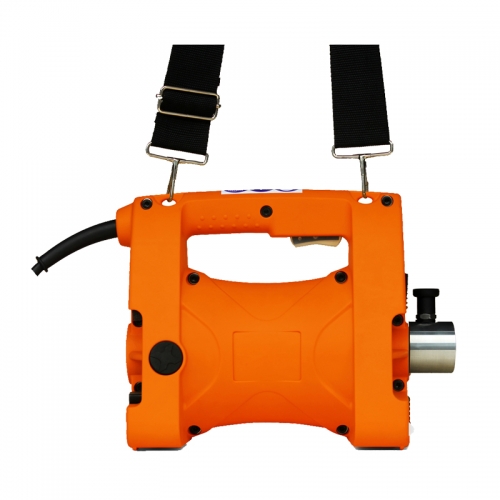

-1 Powerful and reliable motor Strong and waterproofed housing with integrated filter
-2 Well protected carbon brush but easy change,convenient for maintenance
-3 Low noise and soft vibration on flexible shaft
-4 Easy assembling and disassembling for coupling between motor and shaft,no any tool needed.
-5 Interchangeable poker head to all flexible shaft Variety size of poker head could be suitable for different working condition
-6 High frequency of vibration on poker head
-7 Eccentric poker is made by qualified rubber hose with vulcanization protection and
-8 High speed inner core,that provides both flexibility and resistance to wear.
-9 The outer casing rubber hose is with abrasive rubber,double layer of meshing wire,and high quality spring steel as the lining.
-10 The inner core is made by high carbon steel wire that is suitable for high speed working condition
Specifications
| MOTOR | FIT HOSE | |||||||
| Model | X-RAY | Model | EP25 | EP29 | EP38 | EP48 | EP58 | |
| Voltage | 115V/230V | Dia. of Vibrating Head | 25mm | 29mm | 38mm | 48mm | 58mm | |
| Frequency | 50Hz/60Hz | Dia. of Rubber Hose | 27mm | |||||
| Power | 2.3KW | Dia. of Flexible Shaft | 8mm | |||||
| No-load Speed | 17,500RPM | Length | 1~6m | |||||
| Weight | 5.5Kg | Vibrating Frequency | 200Hz(12,000)RPM | |||||
| Package | 35.8x20x24cm | Package | 75x65x5cm | 75x65x6cm | ||||
